3 Bedroom Rustic Courtyard House

3 Bedroom Rustic Courtyard House

Regular price $29.99 USD
Regular price Sale price $29.99 USD
Sale Sold out
Shipping calculated at checkout.
  • 2 Levels
  • 3 Bed
  • 2.5 Bath
  • 160 Sqm
  • 6m x 22m

Key Specifications

3 bedrooms

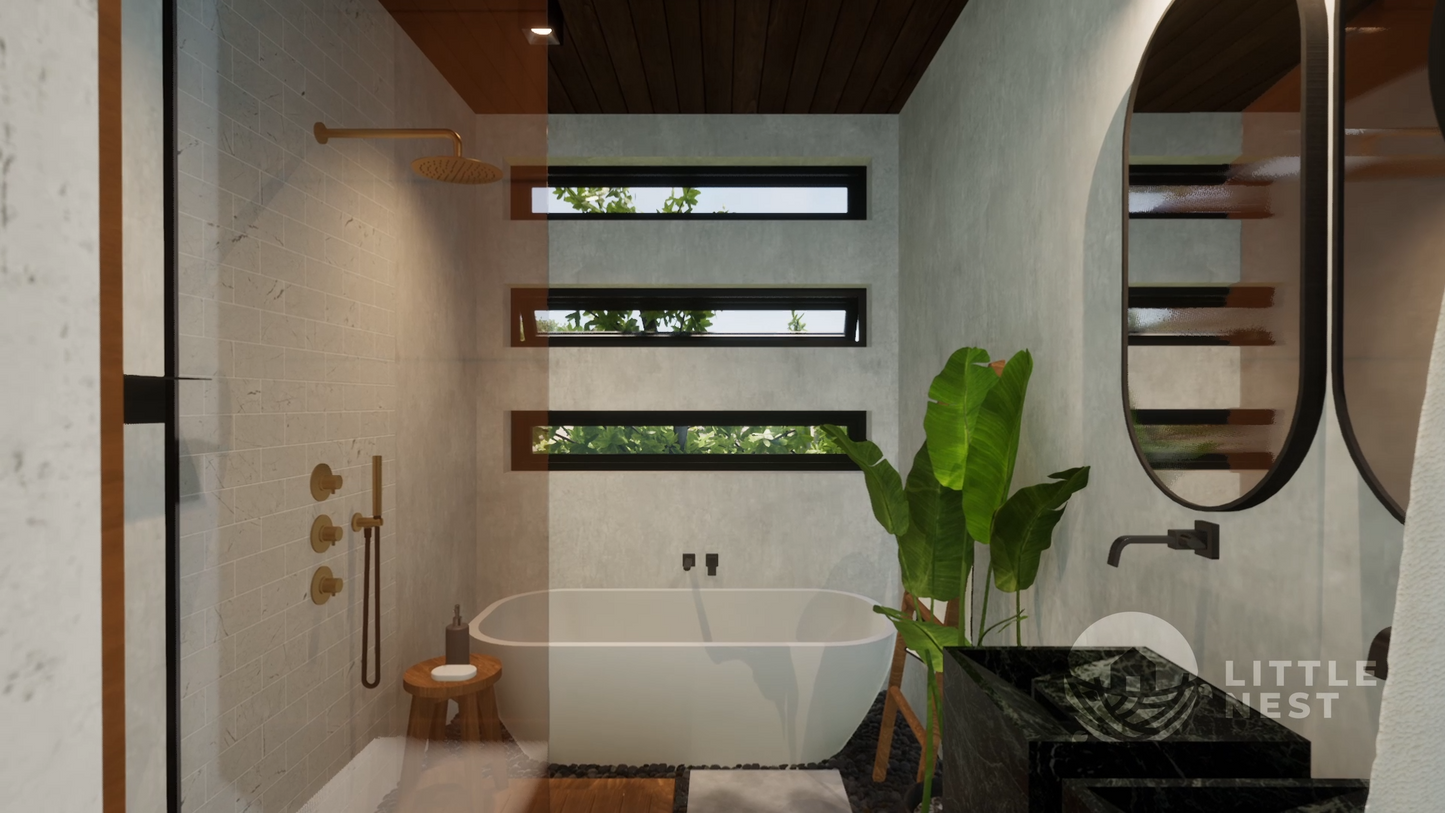

2 full bathrooms
1 Guest toilet
Combined kitchen & dining area
Hidden laundry room
Open courtyard with garden space
Water feature (pond / reflecting pool)
1 Living room

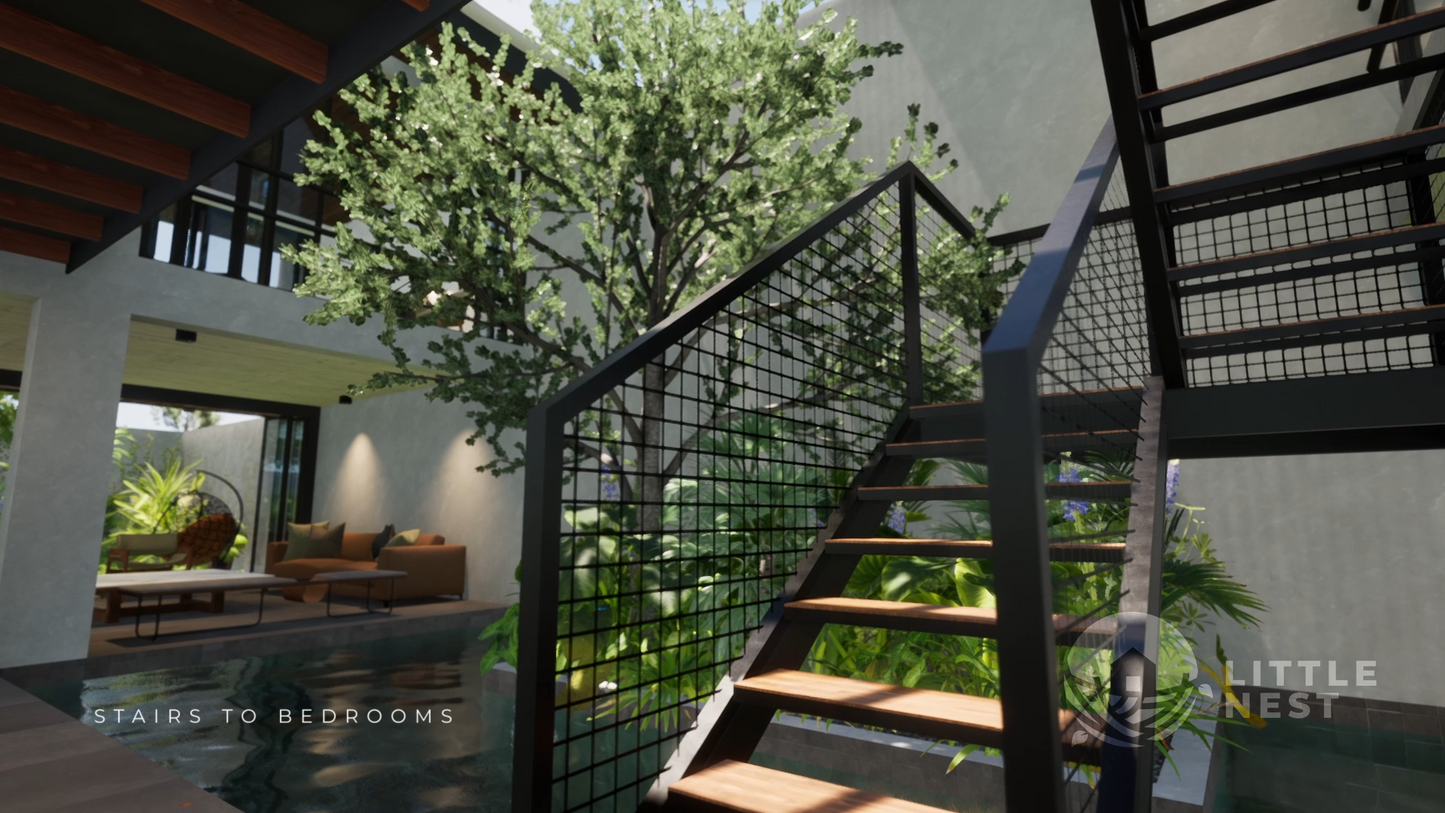

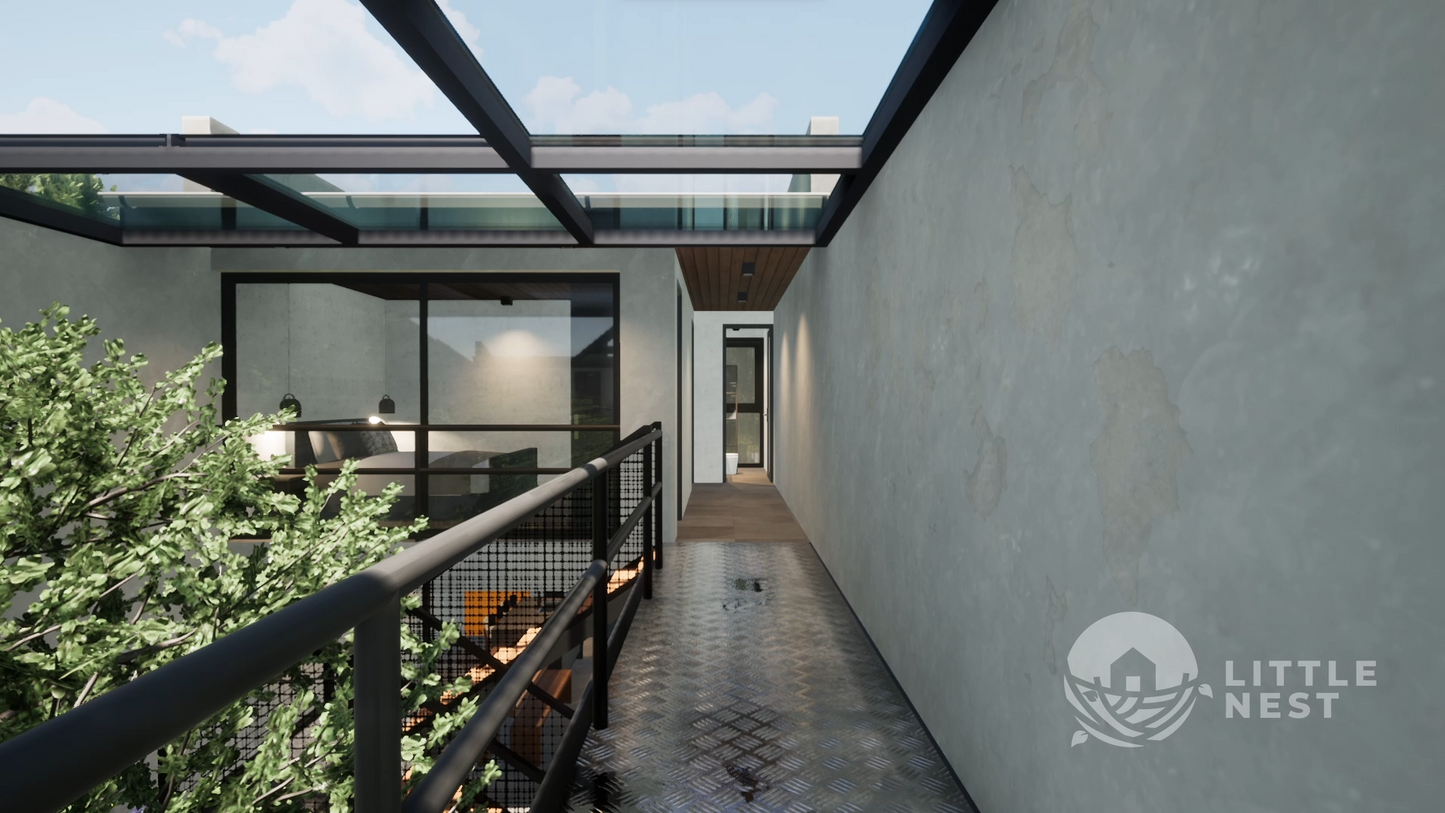

Covered walkway/bridge connecting blocks
Rugged design elements
Simple material finishes

Description

Step into a world of innovative design with our stunning narrow 6-meter wide house layout. This architectural gem is divided into two blocks, "A" and "B," separated by an enchanting open courtyard. The courtyard features space for a small garden and a water feature, which can be either a pond or a reflecting pool, creating a tranquil oasis in the heart of the home.

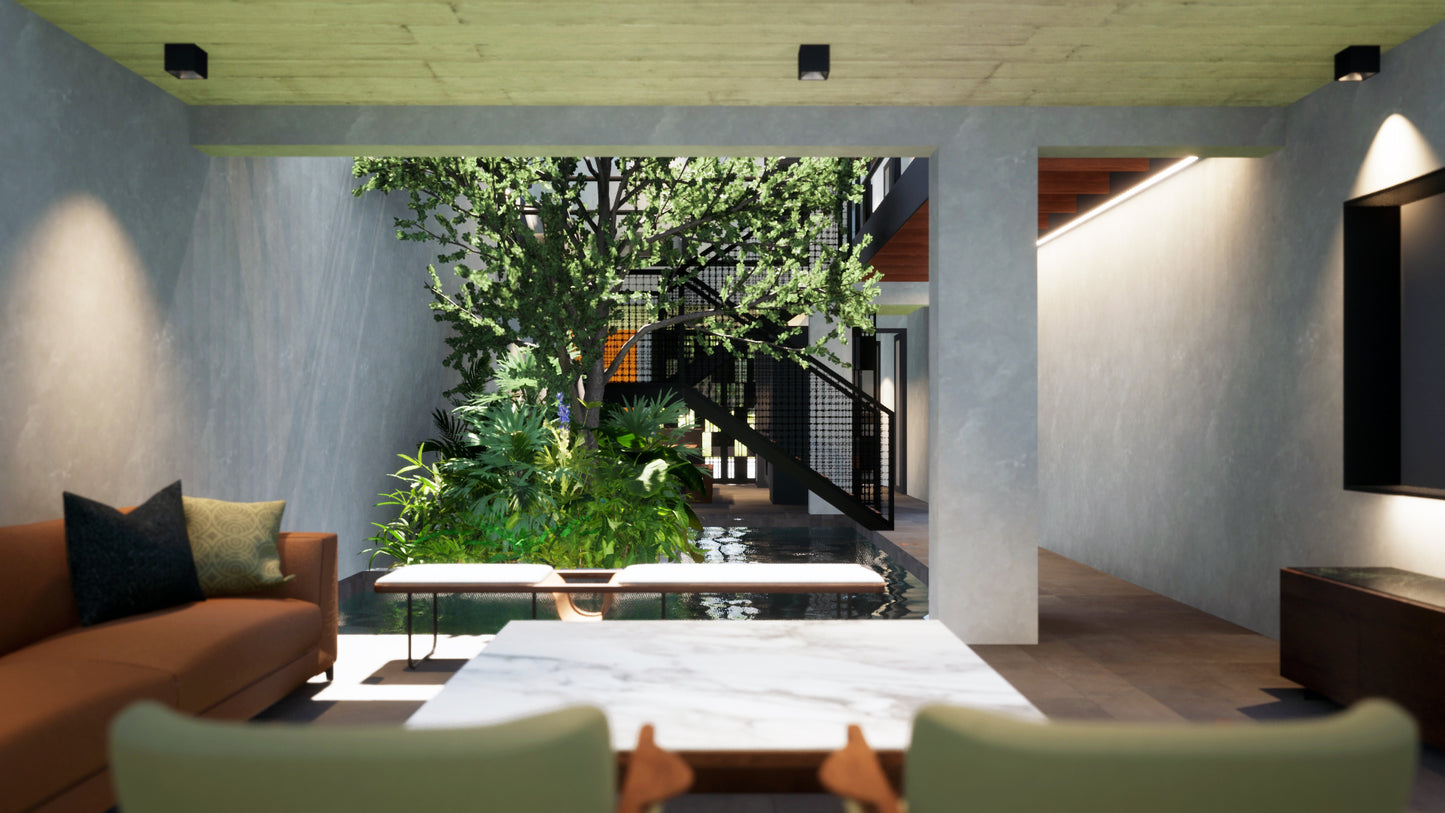

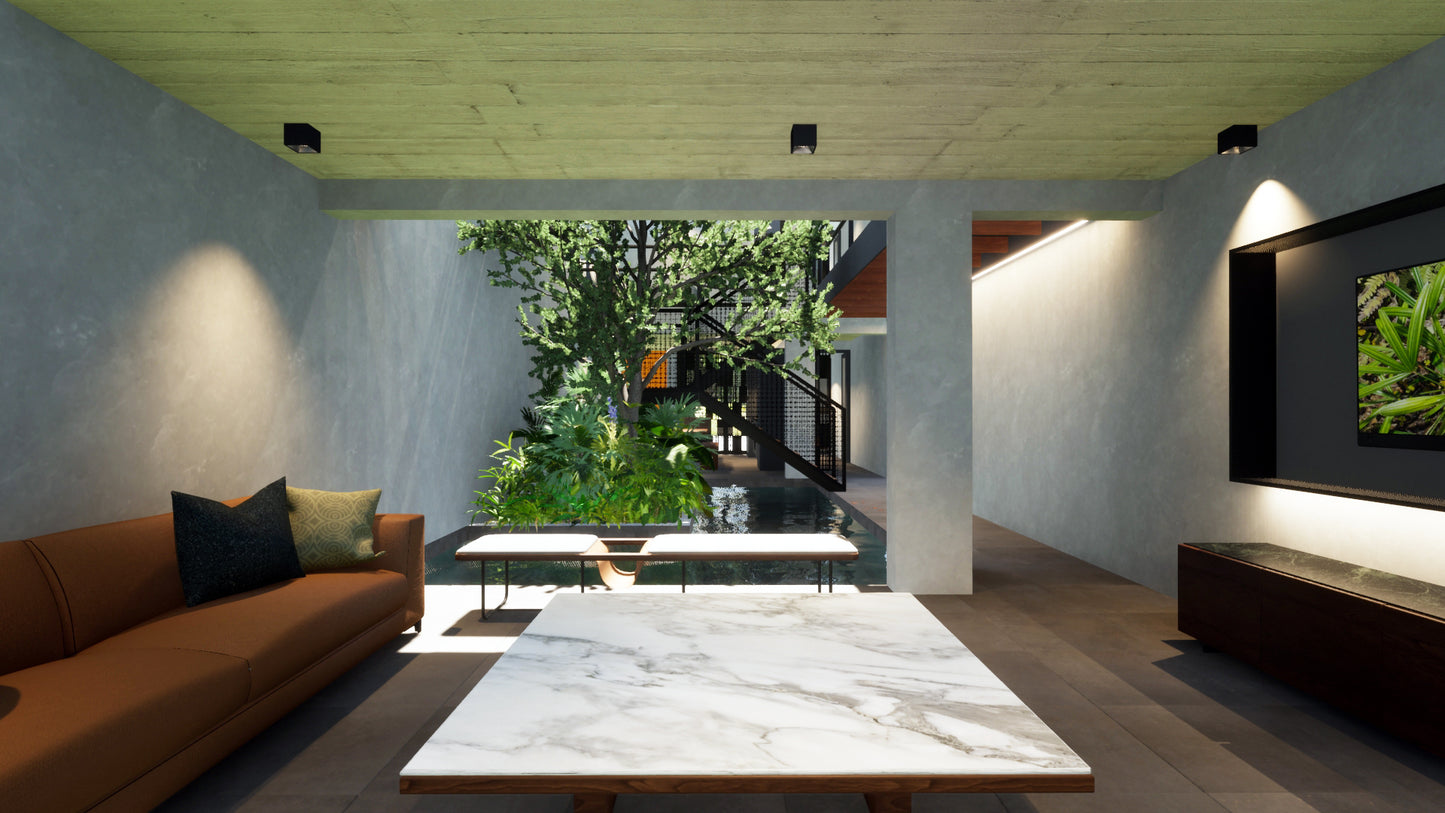

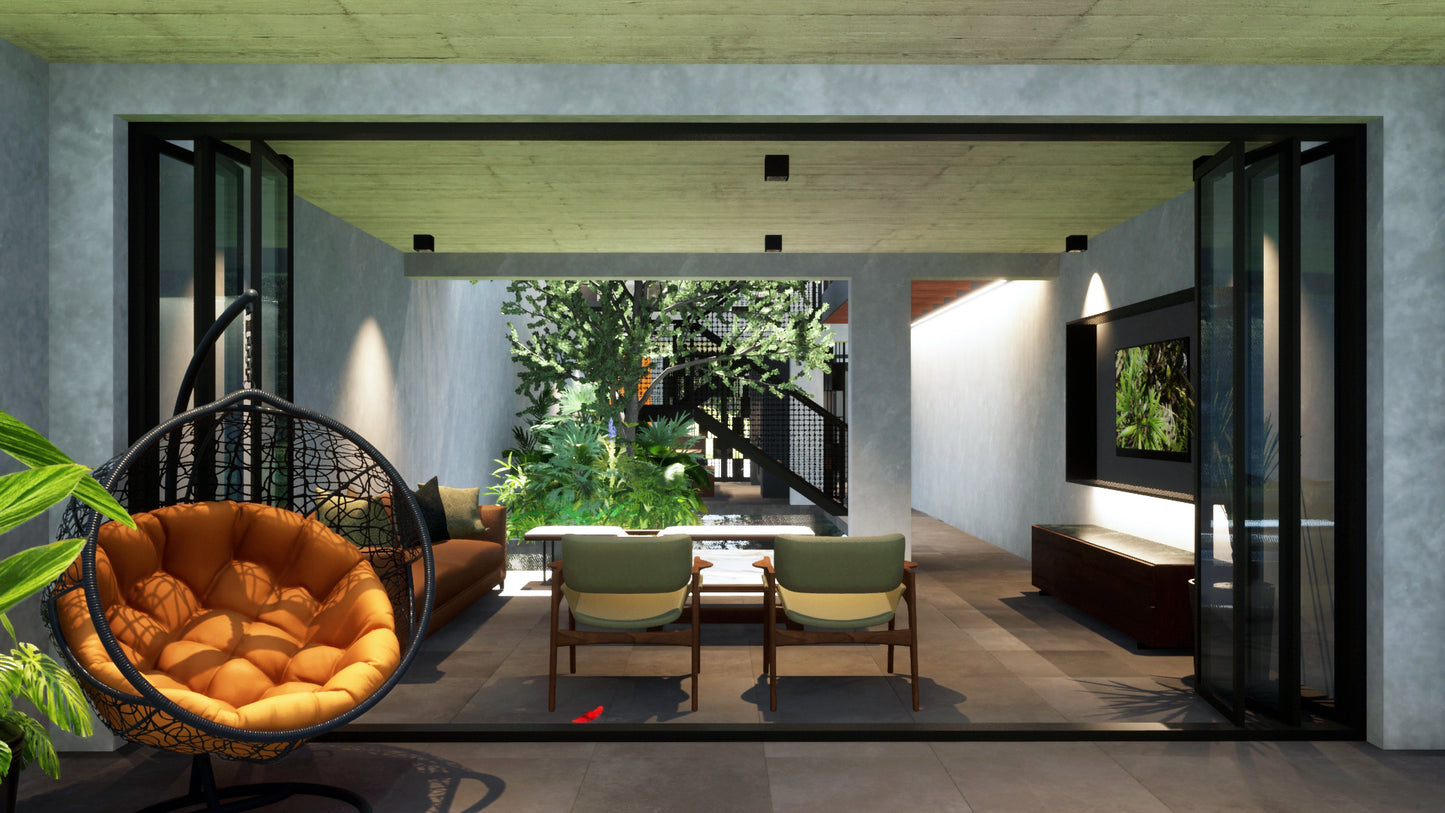

Block "A" contains the kitchen dining area, with the laundry room and guest toilet hidden away right behind the kitchen for convenience. Two bedrooms with their bathroom are located on the second level of block "A." Block "B" houses the inviting living room on the first level and the master bedroom on the second level. The two blocks are connected by a covered walkway/bridge, adding a unique architectural element to the space.

Despite its narrow width, this house maximizes natural light through strategically placed windows, creating a bright and airy atmosphere. The interior is characterized by rugged design elements and simple material finishes, adding a unique charm and character to the space.

Whether you're seeking inspiration for your narrow house or simply appreciate innovative design, this layout is sure to impress. Explore how thoughtful architectural choices can transform a narrow space into a stylish and functional haven.

What you get with this purchase

With this purchase you will get a PDF file download containing:

  • Detailed floor plan layouts of all levels with measurements.
  • Front, Rear & Side Elevations with measurements.
  • Building sections with measurements & annotations.

What is not included:

  • Structural plans
  • Roof Plan
  • Electrical plans
  • Plumbing Plans

Delivery & Returns

Once your payment is confirmed, the PDF file will be made available for
immediate download.

Please note that due to the nature of digital downloads, we do not accept returns or order cancellations.

Advice Disclaimer

The concept house digital floor layouts provided on this website are intended for illustrative and creative purposes only. While we strive to deliver accurate representations, these layouts are not to be considered as exact architectural plans or blueprints.

Please be aware that the concept house digital floor layouts are artistic renderings and do not constitute construction documents, therefore any measurements or dimensions provided are approximate. Actual building designs and construction may vary based on local building codes, architectural considerations, and engineering requirements.

We strongly recommend engaging the services of a qualified architect, contractor and / or structural engineer from your region before using these concept layouts for construction or remodeling projects. Their expertise will ensure that the designs align with your specific needs, comply with local regulations and codes, as well as address any structural or functional challenges.

Reliance on the concept without
proper professional consultation is at your own risk, and we disclaim
any liability for any resulting consequences.

The responsibility for any decisions made based on the concept house digital floor layouts lies solely with the user. We disclaim all liability for any errors, inaccuracies, or misinterpretations that may arise from the use of these layouts.

By accessing and using our concept house digital floor layouts, you acknowledge that you have read and understood this disclaimer and agree to use them at your own risk.

Furthermore, the concept house digital floor layouts provided on this
website are intended solely for personal use and reference. Resale,
redistribution, or any commercial use of these layouts is strictly
prohibited without the express written permission of Little Nest. These
layouts are not to be sold, shared, or otherwise distributed for profit
or gain.
