Little Nest

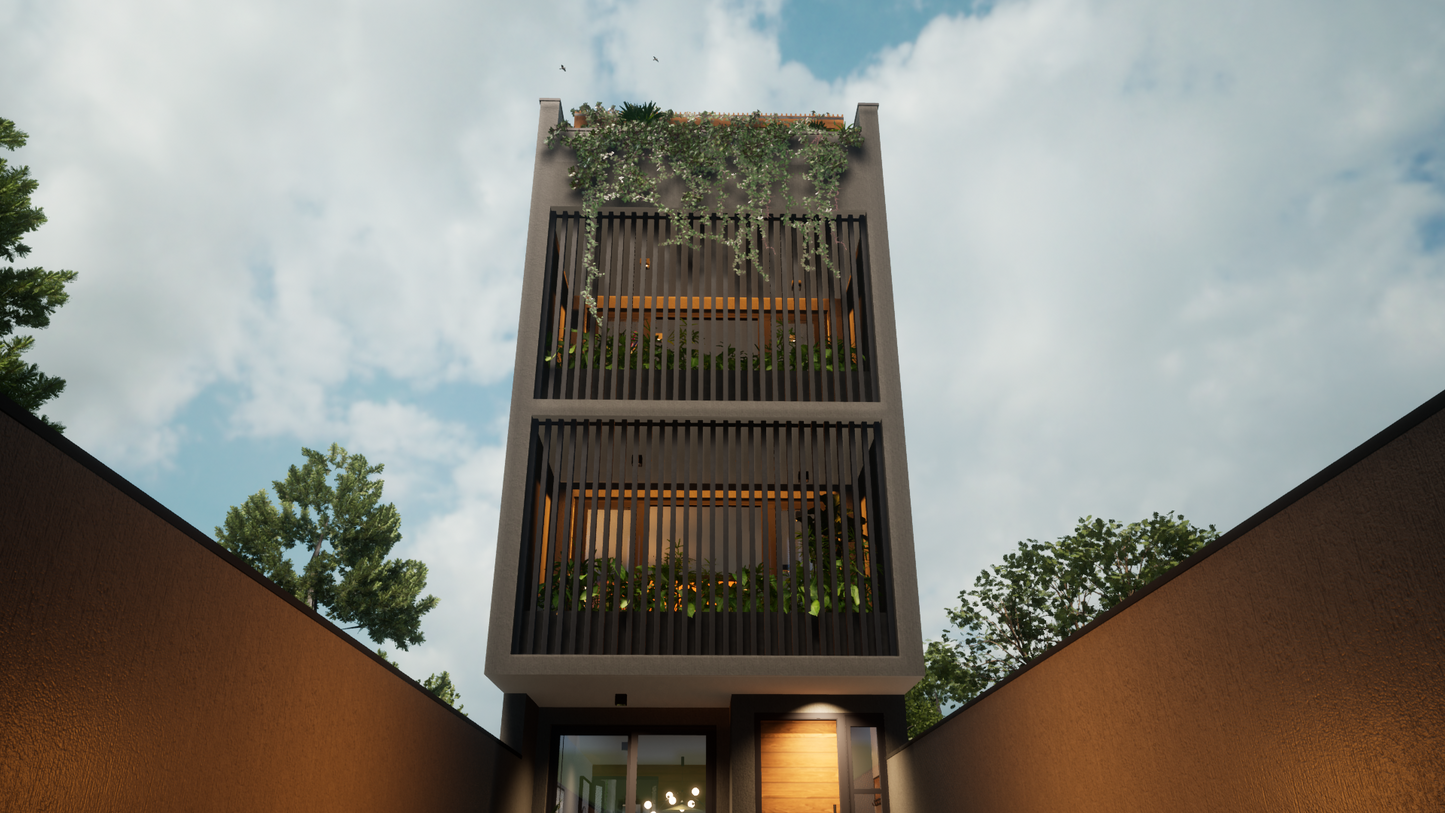

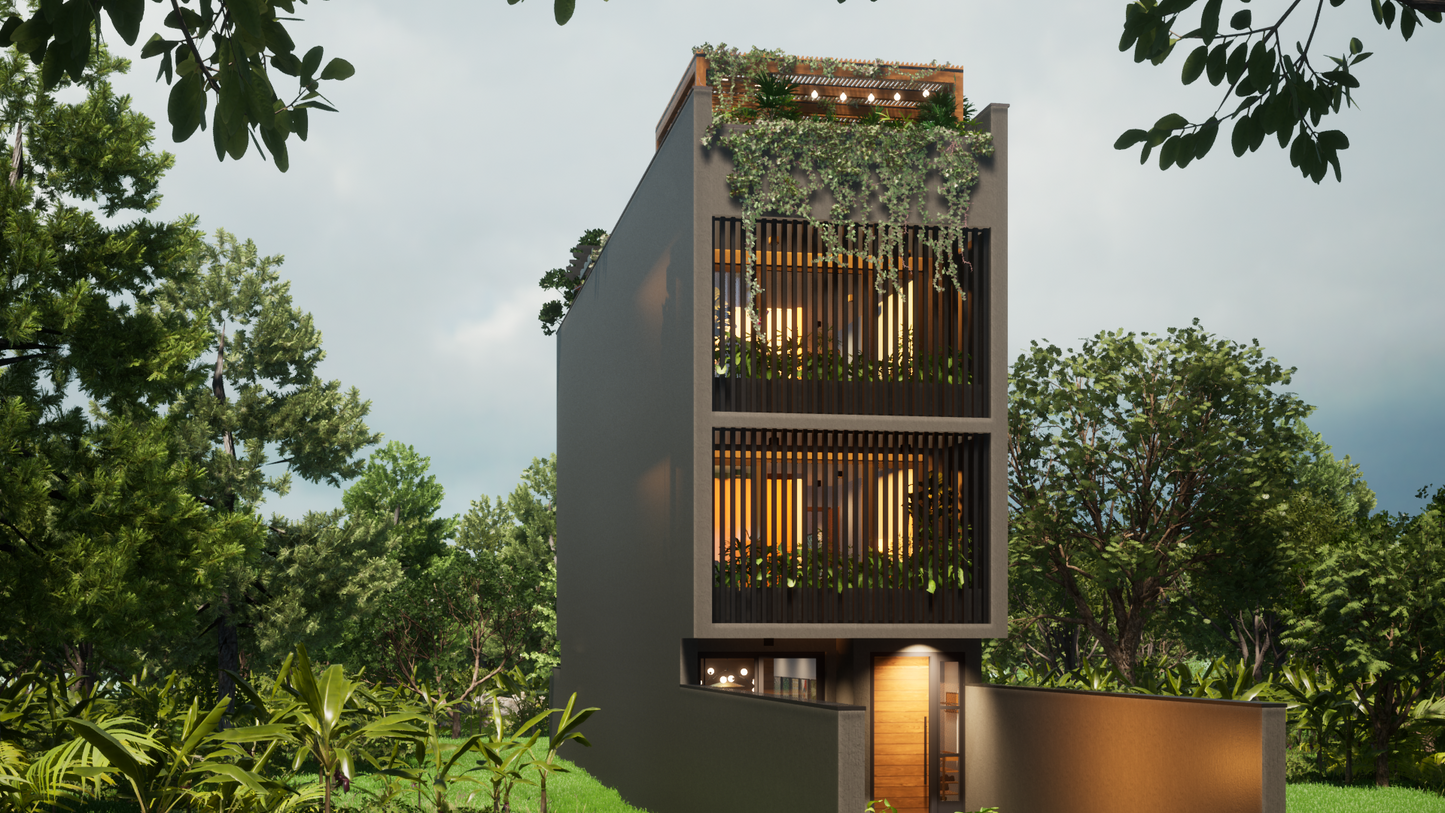

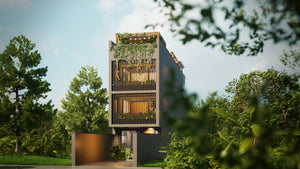

4 Bedroom House with Rooftop Terrace

4 Bedroom House with Rooftop Terrace

Regular price $49.99 USD
Regular price Sale price $49.99 USD
Sale Sold out
Shipping calculated at checkout.
  • 4 Levels
  • 4 Beds
  • 4.5 Baths
  • 210sqm
  • 4.5m x 20m

Key Specifications

4 Levels
4 Bedrooms (the room staged as an office can also be used as a bedroom)
1 Half bath / guest toilet
1 Full kitchen
1 Small backyard
1 Large light-well

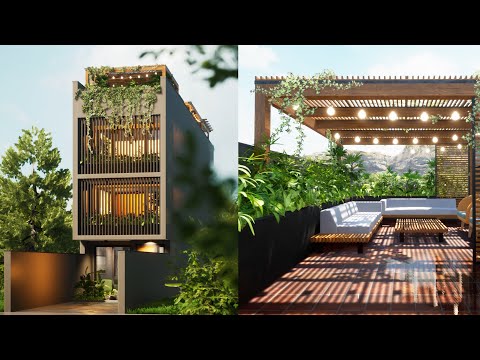

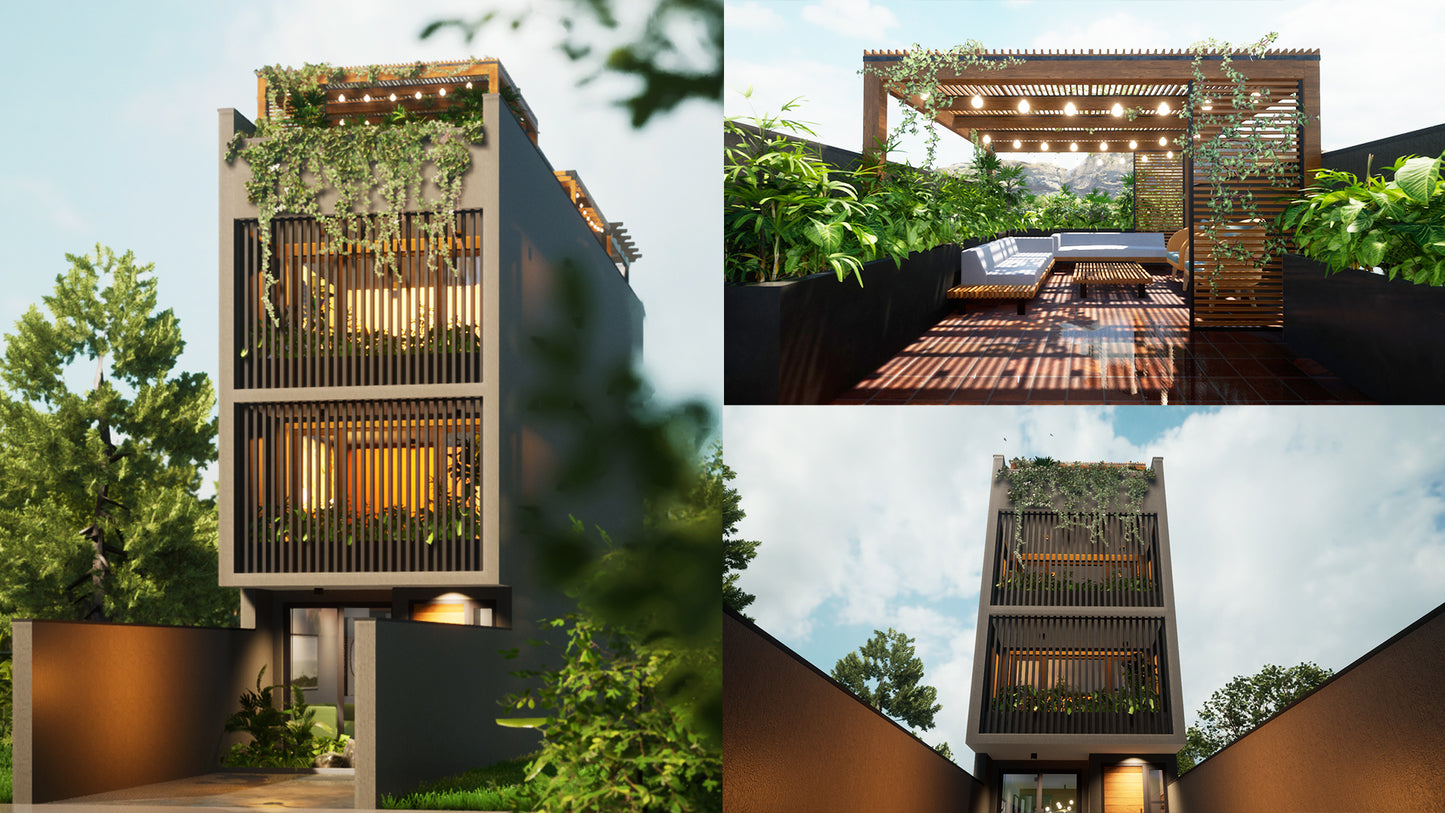

A Rooftop terrace lounge with a pergola (at the front)
A Rooftop terrace meditation area (at the back)

Description

This 4 bedroom terrace house / townhouse design sits on a 4.5 x 30 meter plot with the total footprint of the house at under 4.5 x 20 meters (under 90sqm).

The interior layout accounts for communal living space as well as spacious private quarters in the bedrooms with inbuilt planters spanning the width of the balconies of bedrooms situated at the front of the house that immerses them in a sense of nature.

The light well in the middle of the house next to the staircase no only prevents the center of the structure from being dark and moody by letting in lots of natural light but it also acts as an inlet for fresh air and enables air circulation and the climax of the house is the beautiful rooftop garden terrace.

What you get with this purchase

With your purchase, you’ll receive an instant PDF download that includes:

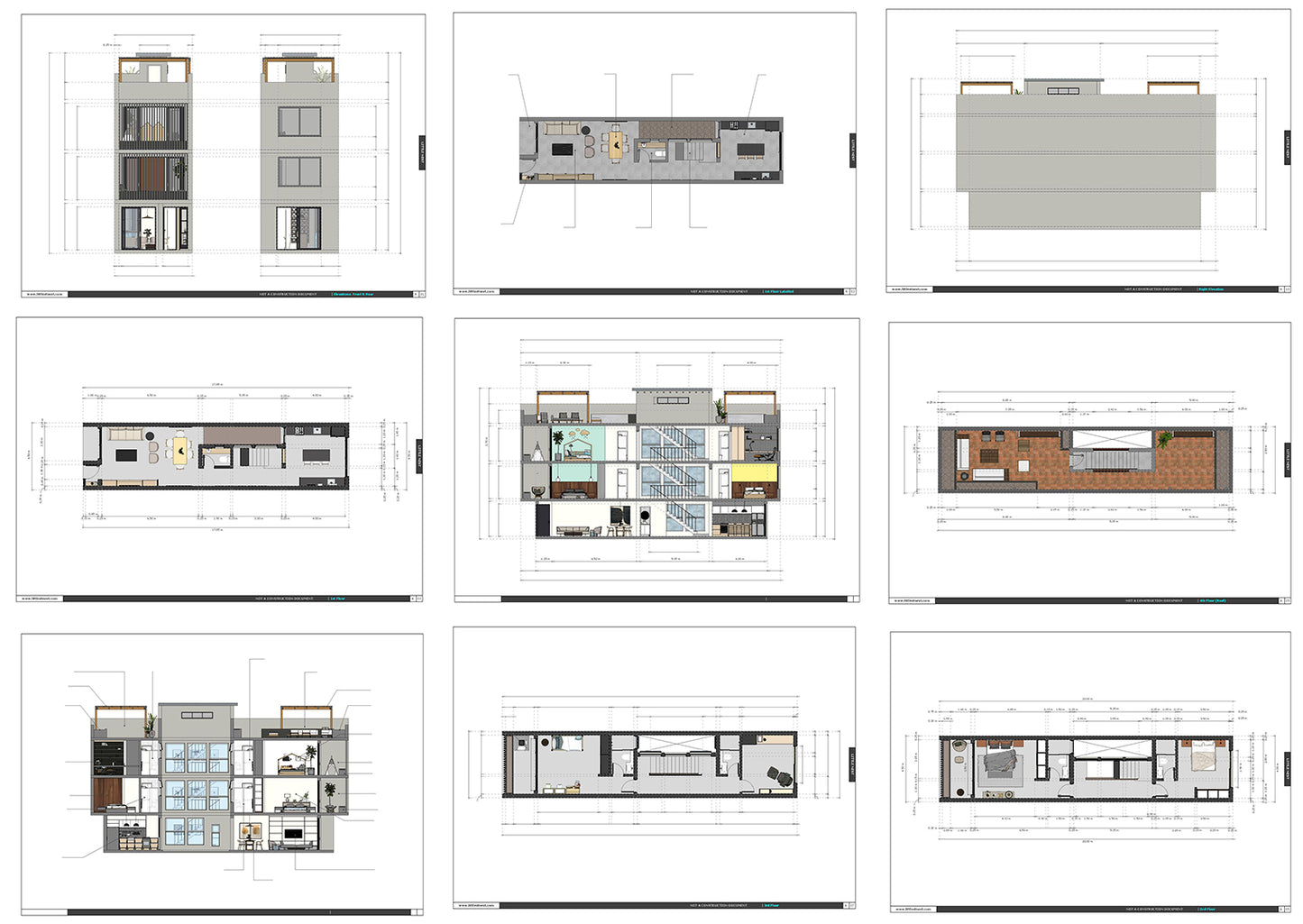

  • Detailed Floor Plans: Complete layouts of all levels with precise dimensions for each room and space.

  • Exterior Elevations: Front, rear, and side views with exact dimensions to visualize the home's appearance.

  • Building Sections: Cross-sectional views with dimensions and annotations, offering insight into the structure’s layout and height.

What is not included:

  • Roof Plan
  • Electrical plans
  • Plumbing Plans

Delivery & Returns

Once your payment is confirmed, the PDF file will be made available for
immediate download.

Please note that due to the nature of digital downloads, we do not accept returns or order cancellations.

Advice Disclaimer

The concept house digital floor layouts provided on this website are intended for illustrative and creative purposes only. While we strive to deliver accurate representations, please be aware that the concept house digital floor layouts are artistic renderings and do not constitute construction documents, therefore any measurements or dimensions provided are approximate.

Actual final building designs and construction may vary based on local building codes, architectural considerations, and engineering requirements.

We strongly recommend engaging the services of a qualified architect, contractor and / or structural engineer from your region before using these concept layouts for construction or remodeling projects. Their expertise will ensure that the designs align with your specific needs, comply with local regulations and codes, as well as address any structural or functional challenges.

Reliance on the concept without
proper professional consultation is at your own risk, and we disclaim
any liability for any resulting consequences.

The responsibility for any decisions made based on the concept house digital floor layouts lies solely with the user. We disclaim all liability for any errors, inaccuracies, or misinterpretations that may arise from the use of these layouts.

By accessing and using our concept house digital floor layouts, you acknowledge that you have read and understood this disclaimer and agree to use them at your own risk.

Furthermore, the concept house digital floor layouts provided on this
website are intended solely for personal use and reference. Resale,
redistribution, or any commercial use of these layouts is strictly
prohibited without the express written permission of Little Nest. These
layouts are not to be sold, shared, or otherwise distributed for profit
or gain.
